OCG3H
Features:
2.0mm x 2.5mm Ceramic SMD
3.3 Volt
CMOS Output
RoHS Compliant
Electrical Specifications
| Frequency range | blank | 1.250KHz - 100.000MHz |
| Temperature Stability | Initial Calibration Tolerance: Frequency Stability: vs. Aging: vs. Supply Voltage ±0.2V Variation: vs. Load ±5%: Short Term Stability: | ±0.5ppm max. at shipment Choose from available options <±0.7ppm first yr. <±4.0ppm over 10 yrs <±0.1ppm <±0.01ppm <1 E-10 (0.1 to 30 sec.); typ 5 E-11 at 1 sec. |
| VDD Sensitivity | blank | blank |
| Operating Temperature Range | blank | Choose from available options |
| Storage Temperature Range | blank | -55°C to +125°C |
| Supply Voltage (VDD) | ±0.2V | 5.0VDC |
| Supply Current | blank | blank |
| Warm-up Time | at +25°C | <3 Minutes ±0.1ppm |
| Power Consumption | at Steady State: at Warm Up: | 1.5W Max. 2.5W Max. |
| Output Voltage HCMOS | blank | blank |
| Output Voltage Logic High (VOH) | blank | +4.5V Min. |
| Output Voltage Logic Low (VOL) | blank | +0.4V Max |
| Duty Cycle | blank | 50% ±10% |
| Load Drive Capability | blank | 15pF Max. |
| Rise/Fall Time | 20% / 80% of waveform | 7nS Max. |
| Control Voltage Range | 0.0V to 5.0V | Freq. Deviation: ±4ppm Min. |
| Transfer Function | blank | Positive |
| Input Impedance | blank | 47Kohms Min. |
| Linearity | blank | ±10% Max |
| Pullability | blank | blank |
| Output Type | blank | HCMOS Square wave |
| Output Voltage | blank | blank |
| Start Up Time | blank | blank |
| Standby Current | blank | blank |
| RMS Phase Jitter | blank | blank |
| Phase Noise | at 1Hz: at 10Hz: at 100Hz: at 1KHz: at 10KHz: | -70 dBc -100 dBc -130 dBc -140 dBc -145 dBc |
| Tristate Function | blank | blank |
| Pad 1 Connection | blank | blank |
| Mechanical Trim | blank | blank |
| Aging | blank | blank |
| Tune Port Input Impedance | blank | blank |
| Tune Port Input Modulation Bandwidth | blank | blank |
| Differential Output (VOD) | blank | blank |
| Output Offset Voltage (VOS) | blank | blank |
| Differential Output Error (dVOS) | blank | blank |
| Crystal Cut | blank | AT-cut crystal |

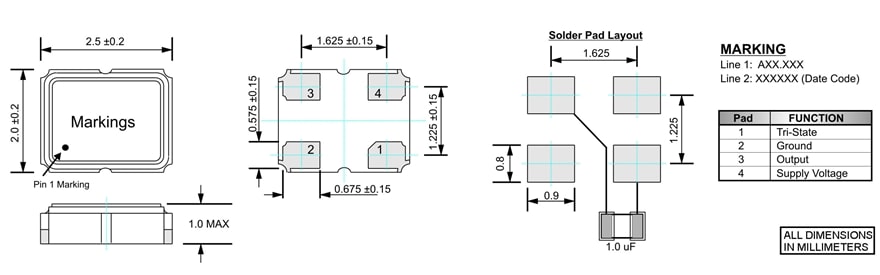

Mechanical Dimensions

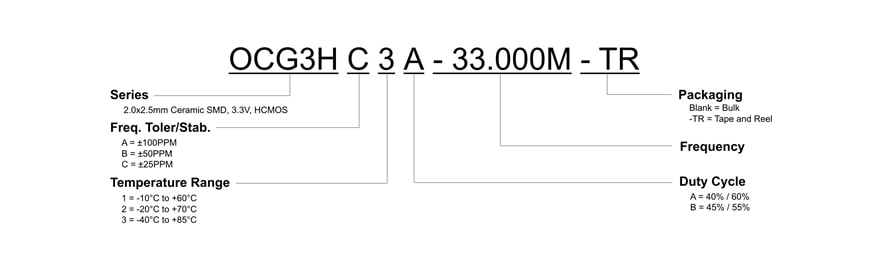

Part Numbering Guide
Environmental Specifications
| Fine Leak Test | MIL-STD-883, Method 1014, Condition A |
| Gross Leak Test | MIL-STD-883, Method 1014, Condition C |
| Mechanical Shock | MIL-STD-883, Method 1004 |
| Flammability | UL94-V0 |
| Moisture Resistance | MIL-STD-883, Method 1004 |
| Moisture Sensitivity | J-STD-020, MSL 1 |
| Resistance to Soldering Heat | MIL-STD-202, Method 210, Condition K |
| Resistance to Solvents | MIL-STD-202, Method 215 |
| Solderability | MIL-STD-883, Method 2003 |
| ESD Susceptibility | MIL-STD-883, Method 3015, Class 1, HBM: 1500V |
| Temperature Cycling | MIL-STD-883, Method 1010, Condition B |
| Vibration | MIL-STD-883, Method 2007, Condition A |
| Soldering Temp | blank |
| Hermeticity of Seal | blank |
