CSMT1
Features:
Miniature SMD Tuning Fork Crystal
Wide Temperature Range
Tight Tolerance and Stability
Tape and Reel Packaging
Electrical Specifications
| Frequency Range | 32.768MHz |
| Frequency Tolerance/Stability | ±20ppm max / (-0.035ppm/(change in °C) 2 max, parabolic |
| Turnover Temperature To | +25°C to ±5°C |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -40°C to +85°C |
| Aging | ±3ppm per year Maximum |
| Shunt Capacitance | 1.0pF Typical, 2pF Maximum |
| Load Capacitance | See options below |
| Mode of Operation | 3.4fF Typical |
| Capacitance Ratio | |
| Quality Factor | 30000 Typical |
| Equivalent Series Resistance | 70,000 Ohms Maximum |
| Mode of Operation | |
| Drive Level | 0.5 µWatt Maximum |
| Insulation Resistance | 500 Megaohms Minimum at 100Vdc |
| Spurious Response | |
| Termination Finish |
Equivalent Series Resistance Table
| Frequency Range | ESR(ohms) | Mode / Cut |
|---|---|---|
| 32.768KHz | 70,000 Max | Watch Crystal |

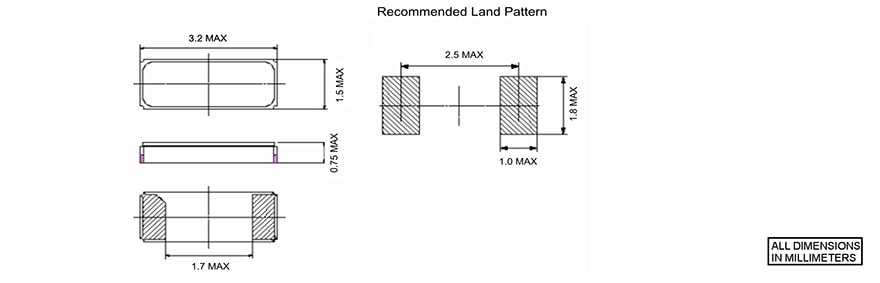

Mechanical Dimensions

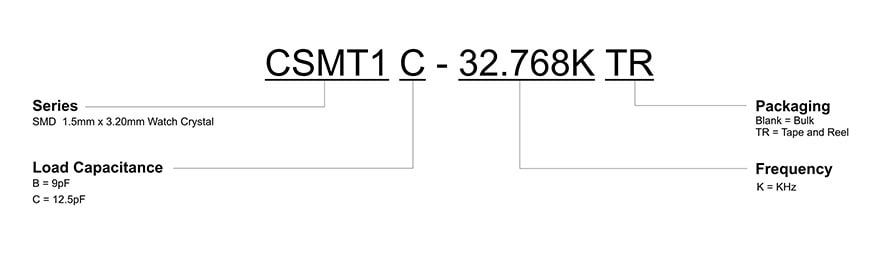

Part Numbering Guide
Environmental Specifications
| Fine Leak Test | MIL-STD-883, Method 1014, Condition A |
| Gross Leak Test | MIL-STD-883, Method 1014, Condition C |
| Mechanical Shock | MIL-STD-883, Method 1004 |
| Flammability | UL94-V0 |
| Moisture Resistance | MIL-STD-883, Method 1004 |
| Moisture Sensitivity | J-STD-020, MSL 1 |
| Resistance to Soldering Heat | MIL-STD-202, Method 210, Condition K |
| Resistance to Solvents | MIL-STD-202, Method 215 |
| Solderability | MIL-STD-883, Method 2003 |
| ESD Susceptibility | MIL-STD-883, Method 3015, Class 1, HBM: 1500V |
| Temperature Cycling | MIL-STD-883, Method 1010, Condition B |
| Vibration | MIL-STD-883, Method 2007, Condition A |
