CSMC3
Features:
SMD Ceramic 3.5mm x 6mm (2 Pad)
Wide Frequency Range
Tight Tolerance and Stability
RoHS Compliant
Electrical Specifications
| Frequency Range | 7.600MHz to 125.000MHz |
| Frequency Tolerance/Stability | See ordering options below |
| Turnover Temperature To | |
| Operating Temperature Range | See ordering options below |
| Storage Temperature Range | -40°C to 85°C |
| Aging | ±3ppm per year Maximum |
| Shunt Capacitance | 7pF Maximum |
| Load Capacitance | See ordering options below |
| Mode of Operation | |
| Capacitance Ratio | |
| Quality Factor | |
| Equivalent Series Resistance | |
| Mode of Operation | See Below |
| Drive Level | 100 µWatts Max, 100 µWatts Correlation |
| Insulation Resistance | 500 Megaohms Minimum at 100Vdc |
| Spurious Response | -3dB Minimum: Fo to Fo +5000ppm |
| Termination Finish |
Equivalent Series Resistance Table
| Frequency Range | ESR(ohms) | Mode / Cut |
|---|---|---|
| 7.600MHz to 11.900MHz | 100 Max | Fundamental / AT |
| 12.000MHz to 13.900MHz | 60 Max | Fundamental / AT |
| 14.000MHz to 19.900MHz | 50 Maximum | Fundamental / AT |
| 20.000MHz to 54.000MHz | 40 Max | Fundamental / AT |
| 40.000MHz to 59.000MHz | 70 Max | 3rd Overtone / AT |
| 60.000MHz to 125.000MHz | 60 Max | 3rd Overtone / AT |

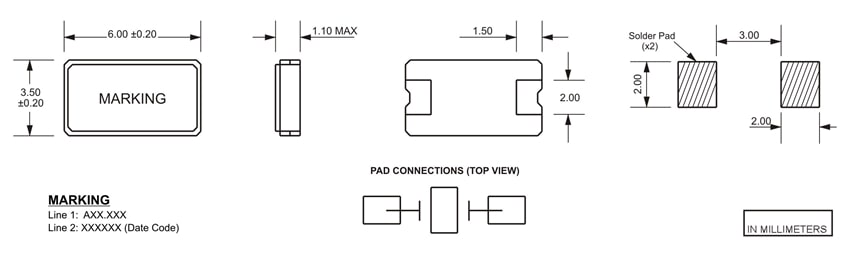

Mechanical Dimensions

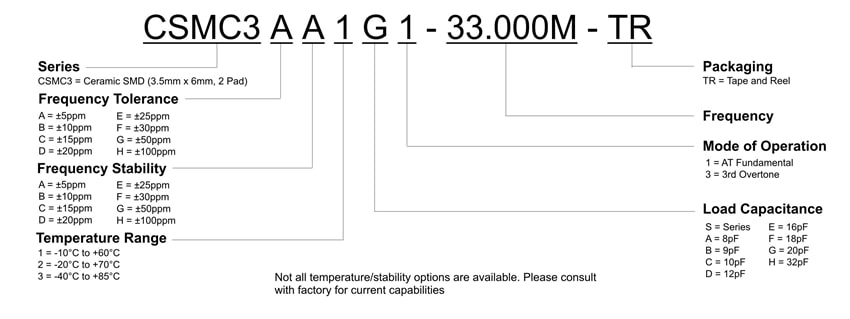

Part Numbering Guide
Environmental Specifications
| Fine Leak Test | MIL-STD-883, Method 1014, Condition A |
| Gross Leak Test | MIL-STD-883, Method 1014, Condition C |
| Mechanical Shock | MIL-STD-883, Method 2002, Condition B |
| Flammability | UL94-V0 |
| Moisture Resistance | MIL-STD-883, Method 1004 |
| Moisture Sensitivity | MIL-STD-202, Method 210, Condition K |
| Resistance to Soldering Heat | MIL-STD-202, Method 210, Condition K |
| Resistance to Solvents | MIL-STD-883, Method 2003 |
| Solderability | MIL-STD-883, Method 2003 |
| ESD Susceptibility | MIL-STD-883, Method 3015, Class 1, HBM: 1500V |
| Temperature Cycling | MIL-STD-883, Method 1010, Condition B |
| Vibration | MIL-STD-883, Method 2007, Condition A |
