C38
Features:
Tuning Fork Watch Crystals
3mm x 8mm Cylindrical
Low Cost
32.768KHz Only
Electrical Specifications
| Frequency Range | 32.768KHz |
| Frequency Tolerance/Stability | ±20ppm (-0.042ppm/(change in °C)2 Maximum, Parabolic; Turn over temperature at 25°C ±5°C) |
| Turnover Temperature To | blank |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -40°C to +85°C |
| Aging | ±5ppm/year Maximum |
| Shunt Capacitance | 0.85pF Typical, 2pF Maximum |
| Load Capacitance | Choose from available options |
| Mode of Operation | 2.0fF Typical |
| Capacitance Ratio | blank |
| Quality Factor | blank |
| Equivalent Series Resistance | 35,000 Ohms Maximum |
| Mode of Operation | blank |
| Drive Level | 1 µWatt Maximum |
| Insulation Resistance | 500 Megaohms Minimum at 100Vdc |
| Spurious Response | blank |
| Termination Finish | blank |
Equivalent Series Resistance Table
| Frequency Range | ESR(ohms) | Mode / Cut |
|---|---|---|
| 32.768KHz | 35,000 Max | Watch Crystal |
| blank | blank | blank |
| blank | blank | blank |
| blank | blank | blank |
| blank | blank | blank |
| blank | blank | blank |
| blank | blank | blank |

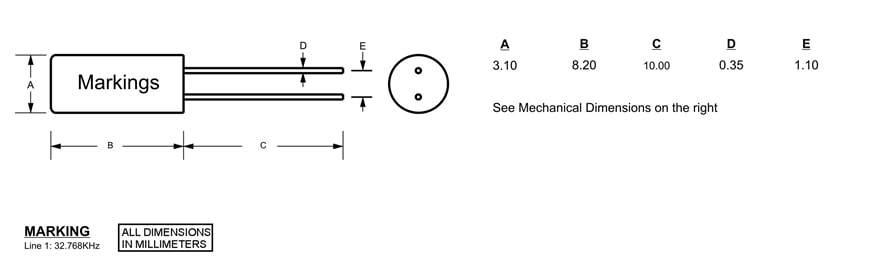

Mechanical Dimensions

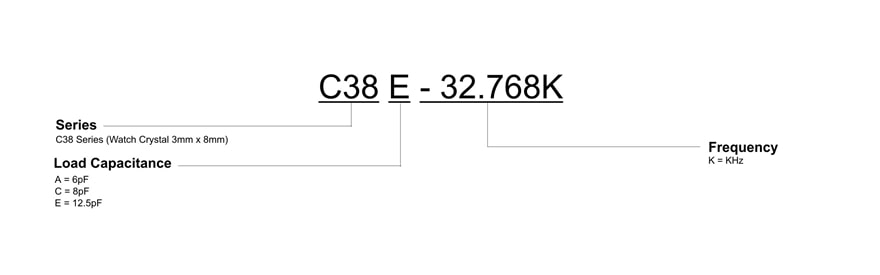

Part Numbering Guide
Environmental Specifications
| Fine Leak Test | MIL-STD-883, Method 1014, Condition A |
| Gross Leak Test | MIL-STD-883, Method 1014, Condition C |
| Mechanical Shock | MIL-STD-883, Method 1004 |
| Flammability | UL94-V0 |
| Moisture Resistance | MIL-STD-883, Method 1004 |
| Moisture Sensitivity | J-STD-020, MSL 1 |
| Resistance to Soldering Heat | MIL-STD-202, Method 210, Condition K |
| Resistance to Solvents | MIL-STD-202, Method 215 |
| Solderability | MIL-STD-883, Method 2003 |
| ESD Susceptibility | MIL-STD-883, Method 3015, Class 1, HBM: 1500V |
| Temperature Cycling | MIL-STD-883, Method 1010, Condition B |
| Vibration | MIL-STD-883, Method 2007, Condition A |
